Rubber belt conveyor type "TN"
BRICK WORKS and REFRACTORIES
CEMENT FACTORIES
POTTERY

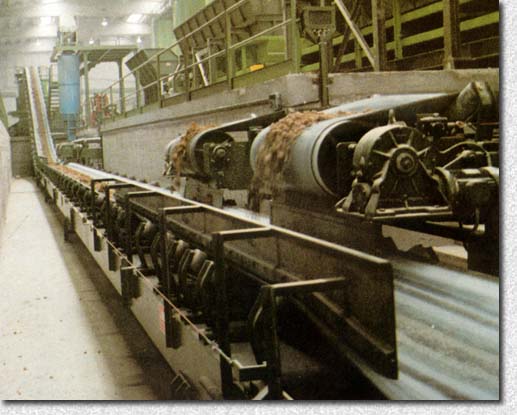

Rubber belt conveyor type TN


Technical Data

TYPE TNP 400 TNP 500 TNP 600 TNP 700 TNP 800 TNP 900 TNP 1000 TNP 1200
CAPACITY (m3/h) 15 25 35 45 55 70 120 170
WEIGHT PER METER (kg) 48 55 62 65 80 95 140 165



TYPE TNV 400 TNV 500 TNV 600 TNV 700 TNV 800 TNV 900 TNV 1000 TNV 1200
CAPACITY (m3/h) 25 40 60 80 100 150 250 350
WEIGHT PER METER (kg) 55 60 70 75 90 105 160 190


Overall Dimensions

Rubber belt conveyor type TN - dimensions Rubber belt conveyor type TN - dimensions Rubber belt conveyor type TN - dimensions
TNV A B C
400 350 650 1000
500 350 750 1100
600 400 850 1200
700 400 950 1350
800 450 1050 1500
900 450 1150 1600
1000 500 1300 1800
1200 500 1450 1900
TNV A B C
400 500 650 1000
500 520 750 1100
600 520 850 1200
TNV A B C
700 600 950 1350
800 650 1050 1500
900 650 1150 1600
1000 700 1300 1800
1200 750 1450 1900

In accordance to the request we construct:
- Vertical Conveyors - Repent Conveyors - Curves until 180°- Conveyors of any breadth for every employment -
