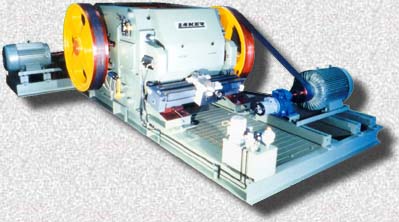

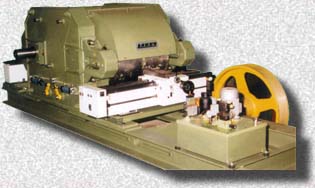

	Our roller mill type "LM", having a very sturdy structure and fabricated entirely from welded steel and normalised to relieve welding stresses, allows the rolling of larges quantities of clay through a very small roller gap without deforming. Albeit a traditional machine it can satisfy the most modern requirements of functional capacity and safety as it is built using the most advanced technical principles. Protection of the roller shells is guaranteed by an hydraulic system with cylinders to "prestress" the roller and prevent contact between them. Also an oildynamic plant with nitrogen sack allows the rollers to open rapidly in case of foreign bodies. Side plates are provided with an easily replaceable element. Scrapers with accessories on a single machined and normalised base-plated are additional characteristics of our roller mill type "LM" which make this machine reliable in operation.

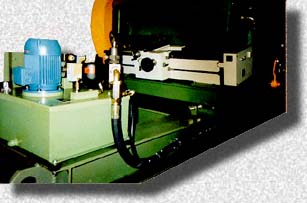

Example of oildynamic plant and cyllinders with turning lathes always in working position.
	Detail of connection of cylinder to support: here one can see the precision of the cylinder with the structure. The support is provided with a plate made of self lubricating material in the lower part in order to make the opening quicker and safer.
Detail of pneumatic scraper device with regulation of speed and opening; this device, together with the easily replaceable sectors on the side plates, makes for rapid maintenance and complete efficency of the machine.
	Detail of complete roller shell showing the advanced fixing system to the shaft and the large useable thickness.
