Roller Mill type "LM.1"
BRICK WORKS and REFRACTORIES
POTTERY

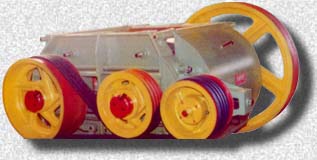

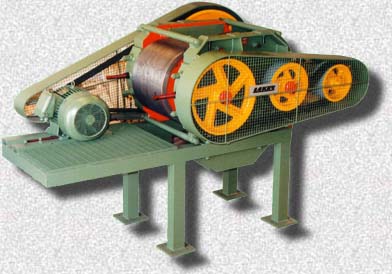

	LAKER differentiates this range of roller mills from the previous one not for its construction characteristics but because it is suitable for less demanding rollings; They are in fact used mainly in the developing countries where production levels are lower and there is a high availability of labour. This roller mill is provided with manual regulation with safety breacking discs.
Furthermore a single motor and a range of pulley results in a low energy consumption. The catalogue also shows the possibility of attaching a range of machine to the roller mill "LM.1" in case of limited space. These roller mill can also be supplied with double flywheels.

Technical Data TYPE DIMENSIONS CILINDERS mm POWER kW WEIGHT kg LM 600.1 600 x 500 30 2680 LM 600.2 600 x 700 37 3050 LM 800.1 800 x 600 45 4950 LM 1000.1 1000 x 800 55 7850

Overall Dimensions

	TYPE LM 600.1 LM 600.2 LM 800.1 LM 1000.1 A 1450 1550 1740 1870 B 870 970 1165 1390 C 700 800 915 1170 D 500 600 600 800 E 620 620 665 1500 F 550 650 755 860 G 710 710 1075 1250 H 1000 1000 1200 1200 I 1600 1600 1950 2300 L 1700 1700 1800 1800 M 300 300 400 500 N 600 600 800 1000
