The particular requirements of rolling and the need to guarantee the pulverisation of
large quantities of clay, more and more polluted with harmfull inclusion of foreign
materials such as lime, have given us the cue for projecting this roller mill. Its structure, entirely of welded and normalised steel which allows a complete non-deformability of the machine, and its solid mass pyramidally reaching make this roller mill the only one on the market capable of satisfying all requirements. The most advance technology has been used in its construction making the machine reliable and easy to maintain: lateral turning and motorized side plates, automatic setting of required gap, overload protection of roll shells, lateral inserction and hydraulic locking of scrapers. The roller mill "LB 1010-1212" is also provided with turning lathes for the accurate and quick reinstatement of the roll shell surfaces. |
||
| Detail of roller mill base and the swing wheel for movable roller in a single non-deformable piece: fabricated with welded and normalised steel, sand-blasted and machine with computer controlled machine tools. |
|
||
 |
Detail of complete roller shell, thichness mm 175 across the whole width of the shell (useable mm 120 ). The advanced fixing system fasten the roller shell to the shaft. |
||

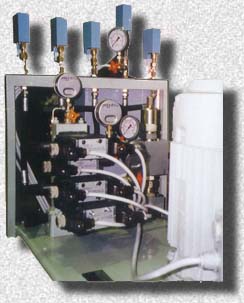

| Detail of an hydraulic driving unit with devices for the general monitoring of the machine and safeguard from foreign bodies through a nitrogen sack. |  |
||
 |

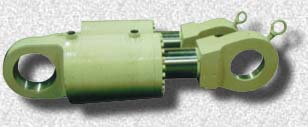

Two large diameter cylinders guarantee the approach of the movable shell fixed to the swing wheel by exerting a low pressure even during the passage of clay. | ||
| Roller mills with access landers and platforms around the whole machine: example of a working machine. |  |
