Clod-breaking mill type "FS"
BRICK WORKS and REFRACTORIES
POTTERY

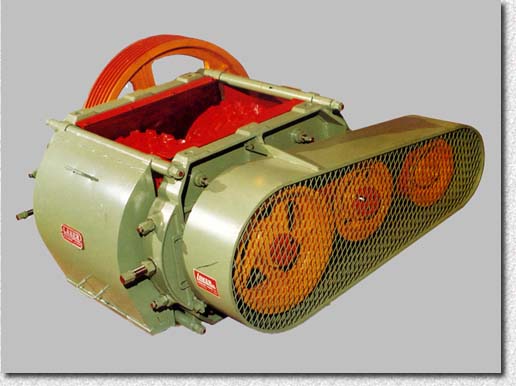

Clod-breaking mill type FS


Technical Data

TYPE
 SIZE OF CILINDER
(mm)		 OUTPUT
(m3/h)		 POWER INSTALLED
(kW)		 WEIGHT
(Kg)
FS-530 530 x 530 15 ÷ 25 22 1900
FS-800 800 x 650 25 ÷ 50 37 4500


Overall Dimensions

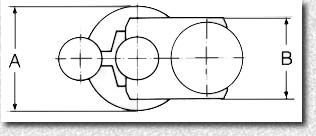

Clod-breaking mill type FS - dimensions
TYPE FS-530 FS-800
A 1000 1200
B 730 1090
C 1700 2250
D 1500 1850
Clod-breaking mill type FS - dimensions
