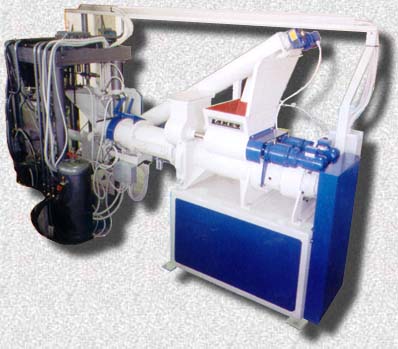

	The LAKER extruder type EV is fabricated entirely from welded and normalised steel, has a low energy consumption and, particularly for customers with limited space, is very compact. Its main characteristic is that just one motor powers the feeding and extruding group which are both aligned on the same shaft. Traditional gears have been raplaced with a special planetary system driven by a direct current motor or by an alternating current motor with inverter speed control. This particular solution allows a variable output depending on the material, removing surges of the auger and therefore passive wear. The superimposition of a single shaft mixer allows water addition and gives a homogeneous mixture of the various components.
Paddles in two halves for easy maintenance, indipendently driven and fitted in the feeder and vacuum chamber in order to avoid obstructions and surges.
	Example of a special version for vertical drawplate.
Detail of driving group, housing for primary shaft support and thrust bearing group.
	Detail of vacuum chamber and grid during inserction or extraction.
Example of blocking of die with quick clutch. Detail of head screw and of wear plates lining the chamber.

Extruder for special product type "EV" POTTERY
